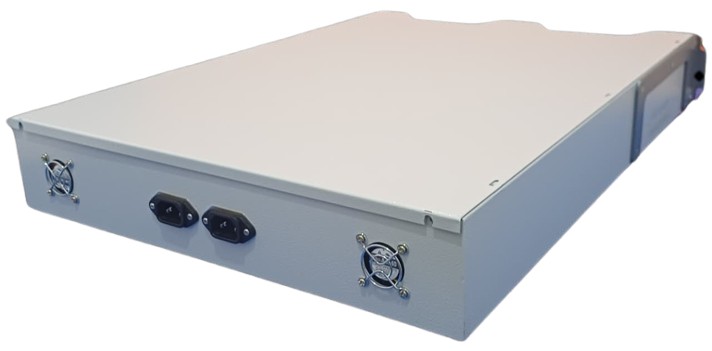

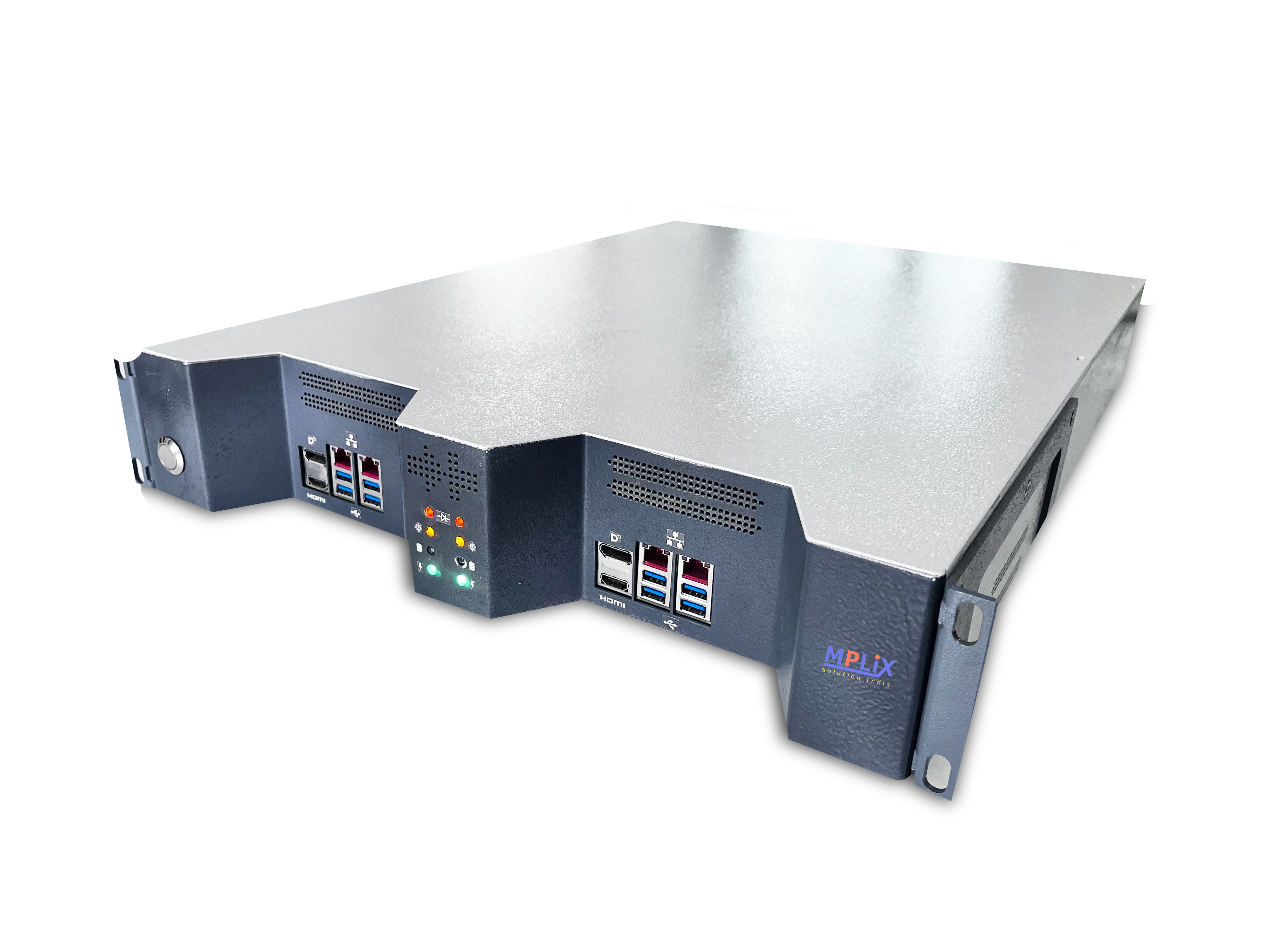

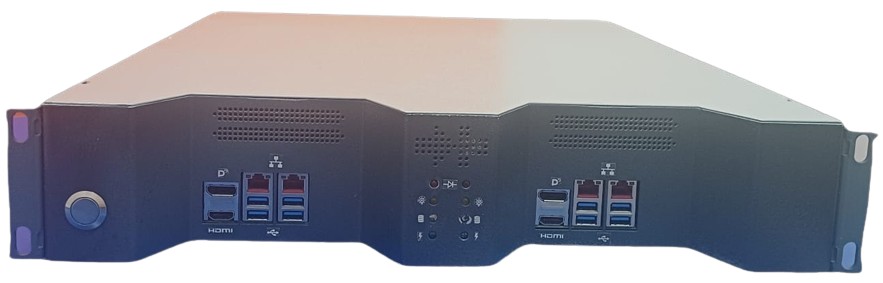

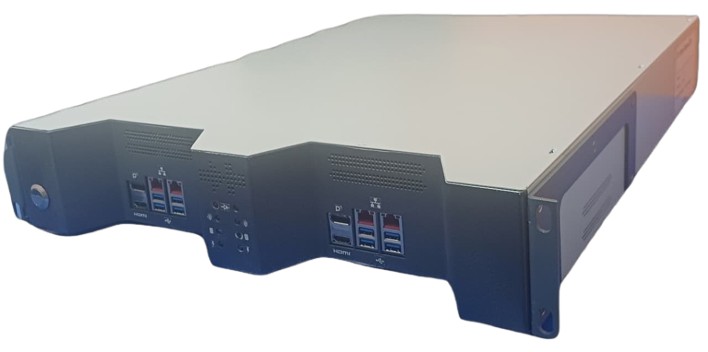

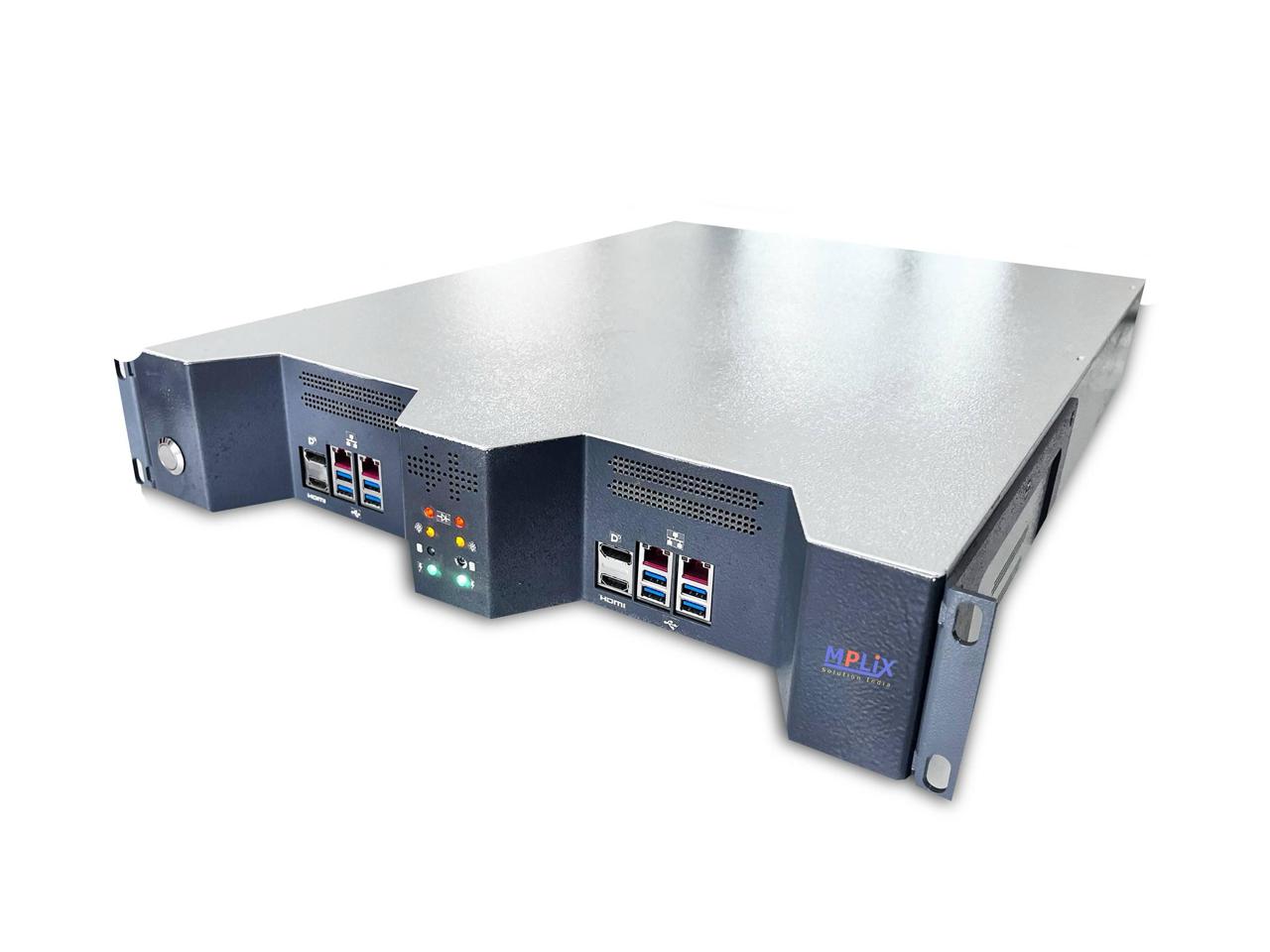

Data Diode | Dataplix S45

Hardware-enforced one-way network security

🔒

Hardware-Enforced One-Way Data Flow

Physical unidirectional architecture ensures data can only move outward, eliminating reverse communication risks and preserving data integrity.

🛡️

Ideal for Critical Environments

Suited for industrial control systems, defense, finance, and any network requiring strict isolation.

⚡

Plug-and-Play for Air-Gapped Networks

Preconfigured for immediate deployment with no additional servers or software needed.

🚀

High Throughput Up to 10 Gbps

Supports fast, reliable transfer of large or time-sensitive data while keeping the source network fully isolated.

🎛️

User-Friendly GUI

Intuitive interface for administrators and standard users, simplifying configuration, monitoring, and data-transfer operations.

🔁

Multi-Protocol & Diverse Data Support

Handles HTTP, HTTPS, FTP, SFTP, SMB, database backup, NTP, UDP, AD support and more—securely transferring varied data types with low latency and no inbound risk.

Frequently Asked Questions

Everything you need to know about DataPlix-S45 Data Diode

A DataPlix-S45 data diode is a hardware device that enforces one-way data transfer, ensuring information flows from a high-security network to a low-security network without any possibility of reverse communication.

It uses a physically enforced one-direction fiber optical cable allowing data to move only in the permitted direction. This eliminates back-flow and hacking risks.

DataPlix-S45 combines hardware-level one-way security with a smart software engine that ensures reliable, high-speed data transfer without compromising safety.

Firewalls are software-defined and can be misconfigured, bypassed, or exploited. A data diode is physically unidirectional, meaning even zero-day attacks cannot force a reverse connection. It provides absolute assurance of one-way data flow.

Files (FTP / SFTP / SMB / NFS)
Syslogs & SNMP traps
Database replication
Video streams

DataPlix-S45 supports 100 Mbps, 1 Gbps, and 10 Gbps options depending on the model.

No. Installation requires connecting sender and receiver via optical fiber, installing software agents, and completing configuration through our web UI. Our team provides full deployment support.

Yes. It is designed for harsh environments such as manufacturing plants, SCADA systems, and industrial control rooms.

The hardware remains in a safe state. No reverse communication is possible. Transfers resume automatically once power is restored.

A secure web dashboard provides transfer statistics, link health, real-time system status, logs, and monitoring controls (Start / Stop / Restart).
